Located in the heart of Amman, Jordan, Yazan Steel has built a reputation as a trusted partner for industrial and construction needs. We take pride in manufacturing and supplying high-quality Carbon Steel Buttweld Pipe Fittings, engineered to meet the rigorous demands of various projects. Our commitment extends beyond mere supply, focusing on providing reliable solutions and exceptional service that supports the growth and infrastructure development not only within Jordan but across the wider region.
The composition of our carbon steel buttweld fittings primarily includes iron and carbon, with carefully controlled additions of manganese and other elements for optimal performance. This results in a material known for its excellent mechanical properties, including high tensile strength and remarkable durability. These fittings are designed to withstand significant internal pressure and mechanical stress, offering a robust and dependable solution for creating secure and long-lasting pipeline connections in demanding environments.
| Pipe Fittings Specifications | ASTM A234/ ASME SA234 |
|---|---|
| Carbon Steel Pipe Fittings size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| CS Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1800, BS10 |
| Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Pipe FittingsType | DN15-DN1200 |
| ASTM A234 Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A234 Pipe Fitting |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A234 Buttweld Fitting |
| ASTM A234 Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Carbon Steel Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA 234 Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

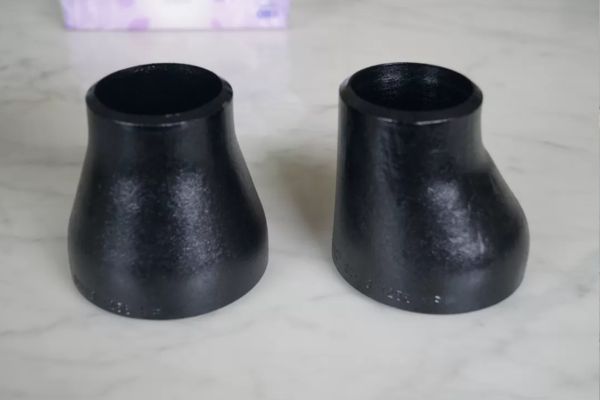

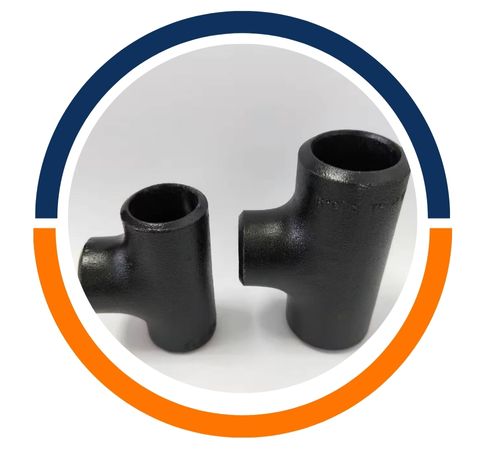

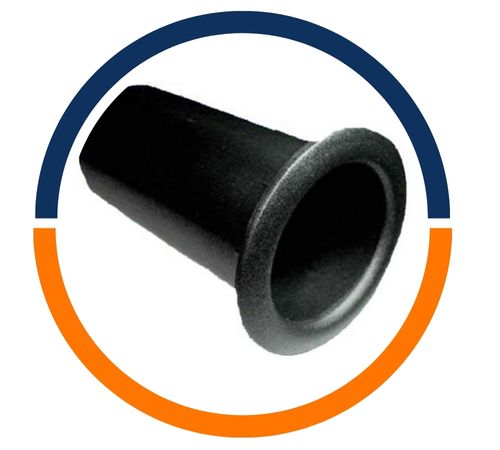

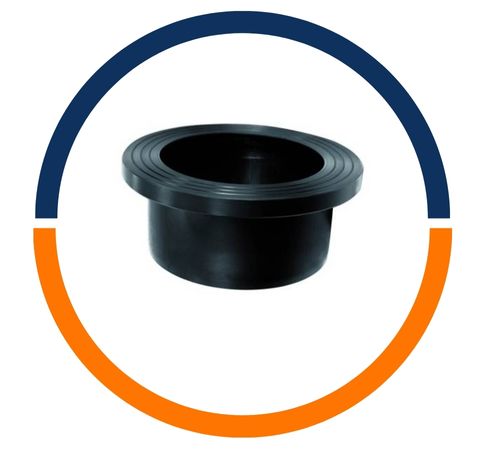

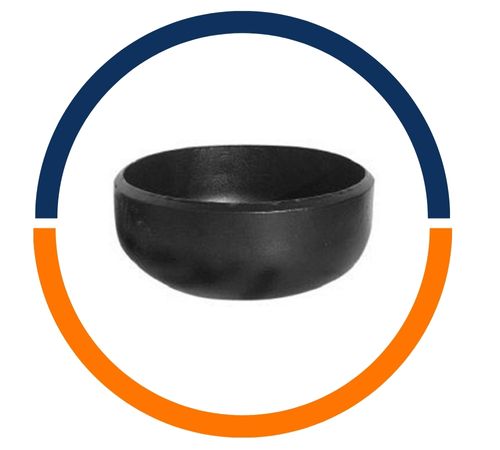

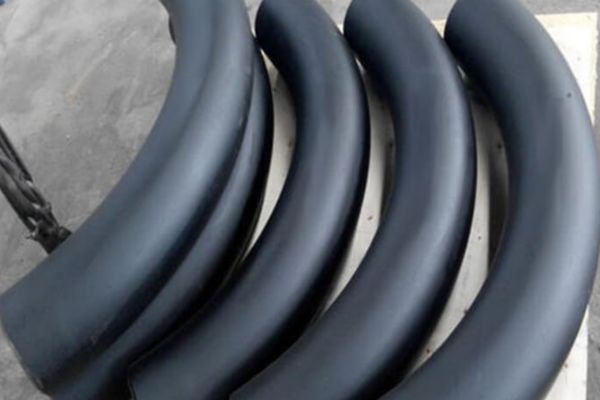

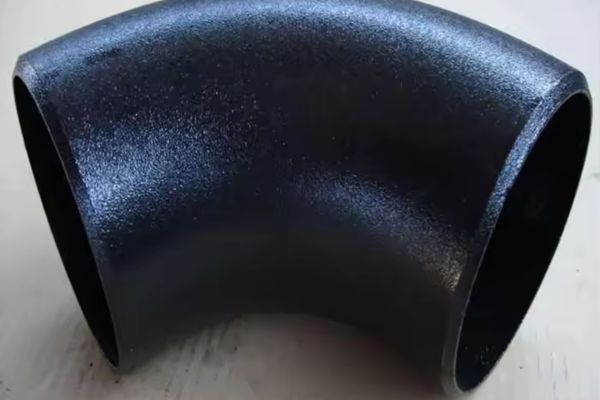

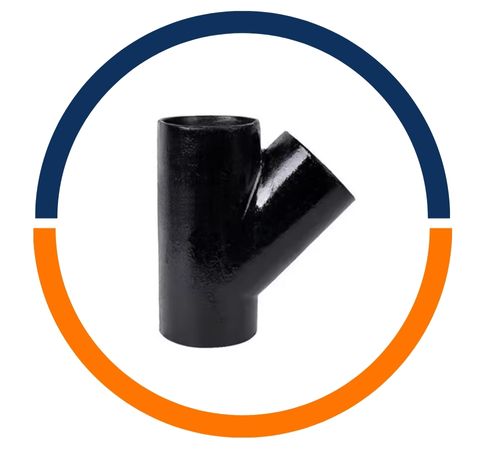

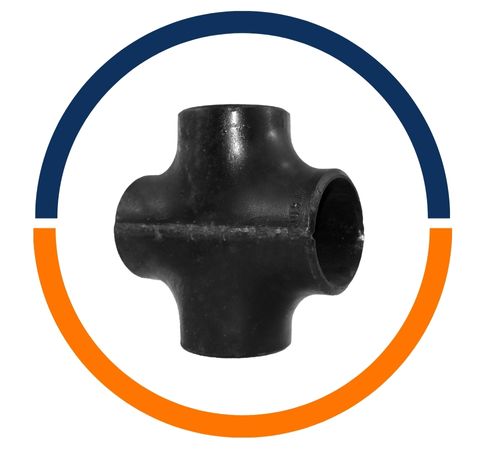

| Specialized manufacturer of | CS 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Element | Carbon Steel Buttweld Fittings (% by weight) |
|---|---|
| Carbon (C) | 0.05% – 2.1% |
| Manganese (Mn) | 0.30% – 1.65% |
| Silicon (Si) | 0.15% – 0.60% |
| Phosphorus (P) | ≤ 0.035% |
| Sulfur (S) | ≤ 0.040% |
| Iron (Fe) | Remainder (balance) |
| Properties OF Carbon Steel Buttweld Pipe Fittings | Metric | Imperial |
| Tensile Strength For Carbon Steel | 595 MPa | 86300 psi |
| Yield Strength For CS | 260 MPa | 37700 psi |
| Elasticity Modulus | 200 GPa | 29000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation At break in 50 millimeter | 55% | 55% |
| Hardness And Rockwell B | 85 | 85 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Daimeter) | Minimum WALL | Normal Weight Chart | Maximum W.P. psi |
| 1/4″ | .540 | .344 | .088 | .086 | 780 |
| 3/8″ | .675 | .473 | .091 | .115 | 620 |
| 1/2″ | .840 | .602 | .109 | .170 | 590 |
| 3/4″ | 1.050 | .804 | .113 | .226 | 480 |
| 1″ | 1.315 | 1.029 | .133 | .333 | 450 |
| *1-1/4″ | 1.660 | 1.360 | .140 | .450 | 370 |
| *1-1/2″ | 1.900 | 1.590 | .145 | .537 | 330 |
| *2″ | 2.375 | 2.047 | .154 | .720 | 280 |
| 2-1/2″ | 2.875 | 2.445 | .203 | 1.136 | 300 |
| *3″ | 3.500 | 3.042 | .216 | 1.488 | 260 |
| 3-1/2″ | 4.000 | 3.521 | .226 | 1.789 | 240 |
| *4″ | 4.500 | 3.998 | .237 | 2.118 | 220 |
| 5″ | 5.563 | 5.016 | .258 | 2.874 | 190 |
| *6″ | 6.625 | 6.031 | .280 | 3.733 | 180 |
| *8″ | 8.625 | 7.942 | .322 | 5.619 | 160 |
| *10″ | 10.750 | 9.976 | .365 | 7.966 | 140 |
| *12″ | 12.750 | 11.889 | .406 | 10.534 | 130 |
| *14″ | 14.000 | 13.073 | .437 | 12.462 | 130 |
| *16″ | 16.000 | 14.940 | .500 | 16.286 | 130 |
| *18″ | 18.000 | 16.809 | .562 | 20.587 | 130 |
| *20″ | 20.000 | 18.743 | .593 | 24.183 | 120 |
| *24″ | 24.000 | 22.544 | .687 | 33.652 | 120 |
| Pressure-Temperature ratings for ASME B16.9 Carbon Steel Buttweld Pipe Fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 – 1 Inches | 1 1/4 – 2 Inches | 2 1/2 – 3 Inches | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Yazan Steel is a top manufacturer and supplier of high-quality Carbon Steel Buttweld Pipe Fittings products in Amman, Jordan. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Carbon steel buttweld pipe fittings are indispensable in creating complex piping networks across numerous sectors. You will find them expertly joining pipes in industrial plants, chemical processing facilities, and critical oil and gas pipelines. Their strength and leak-proof integrity also make them essential for power generation stations, large-scale water distribution systems, and major commercial construction projects. Essentially, wherever there is a need for a strong, permanent, and efficient flow path for liquids or gases, these fittings provide the fundamental connections that keep everything running smoothly.
Yazan Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Amman, Jordan.
