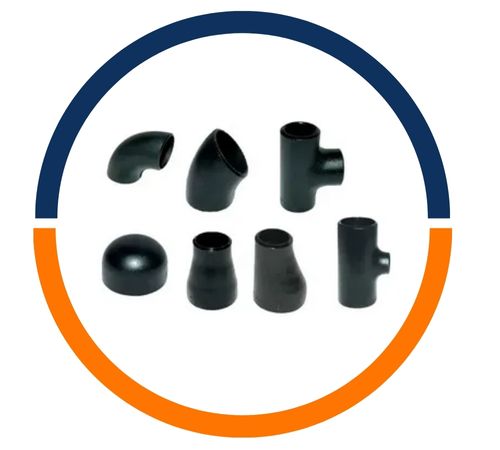

Located in the industrial heart of Amman, Jordan, Yazan Steel has built a strong reputation as a trusted manufacturer and supplier of essential industrial components. Their expertise shines in the production of Carbon Steel A234 WPB Pipe Fittings, which are engineered to meet the demanding requirements of modern piping systems. Known for their unwavering commitment to quality and precision, Yazan Steel ensures these fittings provide reliable performance, making them a cornerstone for robust and efficient industrial operations both within Jordan and across international markets.
The composition of these A234 WPB fittings is a careful blend of carbon, manganese, and silicon, creating a material known for its excellent strength and durability. This specific chemistry gives the fittings outstanding mechanical properties, including high tensile strength and good yield strength, allowing them to withstand significant internal pressure. They also offer excellent ductility and impact resistance, which is crucial for handling the stresses of installation and operation in various temperature ranges, ensuring long-term service without failure.
| Specification | ASTM A234 / ASME SA234 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/2″ NB to 24″NB in. |
| Type | Seamless / Welded / Fabricated |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Surface Treatment | Rust-proof black oil or hot galvanized, Transparent oil |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| Tensile Requirements | WPB | WPC |
| Tensile Strength, min, ksi[MPa] | 60-85 [415-585] | 70-95 [485-655] |
| Yield Strength, min, ksi[MPa] | 32 [240] | 40 [275] |
| Pipe | Fittings | Flanges | Valves | Bolts & Nuts |
| A106 Gr B | A234 Gr WPB | A105 | A216 Gr WCB | A193 Gr B7 A194 Gr 2H |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Minimal Pipe Size | O.D. | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | LR | SR | LR | LR | ||||
| (Millimetre) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radii (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yazan Steel is a top manufacturer and supplier of high-quality Carbon Steel A234 WPB Pipe Fittings products in Amman, Jordan. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
The uses for these reliable fittings are extensive, forming the critical connections in piping systems that transport oil, gas, steam, and water. You will find them essential in power generation plants, petroleum refineries, and large-scale chemical processing facilities. They are equally vital in industrial settings for factory process lines and in the construction of commercial buildings for HVAC applications. Their versatility and pressure-handling capability make them a fundamental component for any project demanding a secure and long-lasting piping network.
Yazan Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Amman, Jordan.
