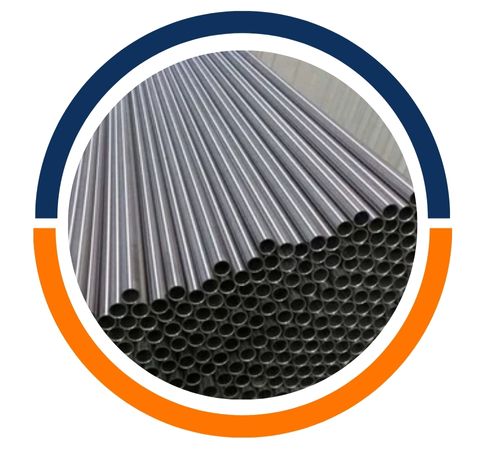

From the heart of Amman, Jordan, Yazan Steel has built a strong reputation as a trusted manufacturer and supplier of specialized industrial materials. Our expertise is particularly focused on high-performance alloys designed for demanding environments, and we take pride in offering superior Alloy Steel T92 Tubing. We understand that your projects require reliability under extreme conditions, which is why we are committed to providing T92 tubing that meets the highest international standards, supporting critical infrastructure and industrial advancement.
The strength of Alloy Steel T92 Tubing comes from its sophisticated composition, which includes chromium, molybdenum, and tungsten, with small additions of vanadium and niobium. This unique blend gives the material exceptional mechanical properties, including a remarkable creep strength that allows it to withstand intense pressure and temperatures up to 650°C. It also offers excellent oxidation resistance and good weldability, making it a robust and durable choice for the most challenging thermal applications where longevity is non-negotiable.
| SA213 T92 Tube Standard | ASTM A213 T92, SA213 T92 (with IBR Test Certificate) |
|---|---|
| SA213 T92 Tube Specifications | ASTM A213 & ASTM A209 (T1 , Ta, T1b) BS/3059/90/PartII/620 & 622 DIN/17175/13CrMo44 DIN/17175/10CrMo910 DIN/17175/15Mo3 |
| Size | 6.35 mm OD to 101.6 mm OD |
| Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| SA213 T92 Tube Thickness | 3-12mm |
| SA213 T92 Tube Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| SA213 T92 Tube Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| SA213 T92 Tube Type | Seamless / ERW / Welded / Fabricated |
| SA213 T92 Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| SA213 T92 Tube Length | Standard Double & In Cut length also. |
| SA213 T92 Tube End | Plain End, Beveled End, Treaded |
| Specialized in | ASME SA213 T92 Boiler Tube, SA213 T92 Heater Tube, SA213 T92 Heat Exchanger Tube |
| SA213 gr T92 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| SA213 grade T92 Tube Application | Seamless Ferritic Alloy Steel Tube for High-Temperature Service |
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | V, % | N, % | Ni, % | Al, % | Nb, % | W, % | B, % |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.07-0.13 | 0.3-0.6 | 0.02 max | 0.01 max | 0.5 max | 8.5-9.5 | 0.3-0.6 | 0.15-0.25 | 0.03-0.07 | 0.4 max | 0.04 max | 0.04-0.09 | 1.5-2.0 | 0.001-0.006 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|---|
| ASTM A213 T92 Tubing | 585 min | 415 min | 20 min | 250 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Jaxon Steel is a leading manufacturer and distributor of high-quality Alloy Steel T92 Tubing in Amman, Jordan. We offer top-grade steel materials and a broad range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional customer service, we source only the finest raw materials to ensure superior performance in industrial applications with demanding specifications. Contact us today for all your Alloy Steel T92 Tubing needs!
You will typically find Alloy Steel T92 Tubing playing a critical role in advanced power generation, forming the essential superheater and reheater coils in ultra-supercritical coal-fired boilers. Its ability to perform under phenomenal heat and pressure also makes it ideal for high-temperature piping systems within petrochemical plants and other heavy industrial settings. By choosing T92, engineers are selecting a material that directly enhances efficiency, reduces maintenance downtime, and ensures the long-term integrity of their most vital thermal energy systems.
Yazan Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Amman, Jordan.
