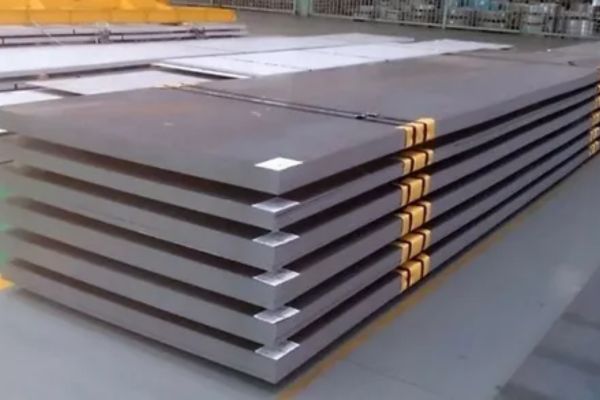

Yazan Steel, a reputable manufacturer and supplier located in Amman, Jordan, takes pride in offering top-notch S355J2G3 Steel Sheets and Plates that are engineered for outstanding structural performance. These plates are celebrated for their impressive strength, toughness, and excellent weldability, making them perfect for a variety of construction and engineering projects. Yazan Steel guarantees that each plate adheres to international quality standards, featuring precise dimensions and consistent material properties. Their S355J2G3 plates find applications in bridges, buildings, heavy machinery, and automotive components. With dependable customer service, competitive pricing, and prompt delivery, Yazan Steel is committed to providing exceptional steel solutions to industries throughout Jordan and the Middle East.
S355J2G3 steel is a low-alloy, high-strength structural grade that includes carbon, manganese, silicon, sulfur, and phosphorus. It also features micro-alloying elements that boost toughness and strength. This material boasts a minimum yield strength of 355 MPa and impressive tensile strength, typically falling between 470–630 MPa. With a Charpy V-notch impact value of 27J at -20°C, S355J2G3 showcases remarkable toughness in low-temperature settings. Its outstanding weldability and formability make it an excellent choice for structural applications that require reliability, durability, and consistent mechanical performance across various working conditions.
| Item | S355J2G3 – Offshore & Structural Steel Plates |
|---|---|
| Technique | hot rolled |
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm or as custom’s request |
| Standard | EN 10025-2:2004 |
| Material | S355J2G3 Steel Plates, En 10025-2 Steel Plate |
| Material | Si | Mn | Ni | C | Al | P | Cu | Cr | S | CEQ |
| DIN 1.0570 | 0.55 max. | 1.60 max. | 0.30 max. | 0.20 max. | 0.020 max. | 0.035 max. | 0.30 max. | 0.30 max. | 0.035 max. | 0.45 max. |
| Grade | Tensile(MPa) | (Mpa)Â Min Yield Strength | Elongation(%) | Thickness (mm) | Min Impact Energy | |
| DIN 1.0570 | ||||||
| 450-600 Mpa | 285 -295Mpa | 18% | 101 -200 | -20 | 27J | |
| 450-630 Mpa | 315 -355 Mpa | 18-20% | 8 -100 | -20 | 27J | |
| 450-600 Mpa | 275 Mpa | 17% | 201 -400 | -20 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 4.7 – 51.0 | Thickness (milimeter) |
|---|---|
| 0.47 (0.70) | Max CET(CEV) |
| 0.40 (0.59) | Typ CET(CEV) |
| Plate Thickness (mm) | Weight (kg/m2) |
| 1.06 mm | 12.06 |
| 2.00 mm | 15.07 |
| 2.05 mm | 19.06 |
| 3 mm | 23.06 |
| 3.02 mm | 25.01 |
| 4 mm | 31.04 |
| 5 mm | 39.03 |
| 6 mm | 47.01 |
| 8 mm | 62.08 |
| 10 mm | 78.05 |
| 12.05 mm | 98.01 |
| 15 mm | 118 |
| 20 mm | 157 |
| 22.05 mm | 177 |
| 25 mm | 196 |
| 30 mm | 236 |
| 32 mm | 251 |
| 35 mm | 275 |
| 40 mm | 314 |
| 45 mm | 353 |
| 50 mm | 393 |
| 55 mm | 432 |
| 60 mm | 471 |
| 65 mm | 510 |
| 70 mm | 550 |
| 75 mm | 589 |
| 80 mm | 628 |
| 90 mm | 707 |
| 100 mm | 785 |
| 110 mm | 864 |
| 120 mm | 942 |
| 130 mm | 1051 |
| 150 mm | 1178 |
| 160 mm | 1256 |
| 180 mm | 1413 |
| 200 mm | 1570 |
| 250 mm | 1963 |
| length x Width | Thickness | Mass per Sq m | Â | Length x Width | Thickness | Mass per Sq m |
|---|---|---|---|---|---|---|
| milimeter | milimeter | Kg/m2 | milimeter | milimeter | Kg/m2 | |
| 2000 x 1000 | 3 | 23.055 | 2000 x 1000 | 30.000 | 235.050 | |
| 2500 x 1250 | 3 | 23.055 | 2500 x 1250 | 30.000 | 235.050 | |
| 3000 x 1500 | 3 | 23.055 | 3000 x 1500 | 30.000 | 235.050 | |
| 3660 x 1830 | 3 | 23.055 | 4000 x 2000 | 30.000 | 235.050 | |
| 4000 x 2000 | 3 | 23.055 | 5000 x 1250 | 30.000 | 235.050 | |
| 2000 x 1000 | 4 | 31.040 | 5000 x 2500 | 30.000 | 235.050 | |
| 2500 x 1250 | 4 | 31.040 | 6000 x 2500 | 30.000 | 235.050 | |
| 3000 x 1500 | 4 | 31.040 | 10000 x 2500 | 30.000 | 235.050 | |
| 3660 x 1830 | 4 | 31.040 | 2000 x 1000 | 32.000 | 251.020 | |
| 2000 x 1000 | 5 | 39.025 | 2500 x 1250 | 32.000 | 251.020 | |
| 2500 x 1250 | 5 | 39.025 | 3000 x 1500 | 32.000 | 251.020 | |
| 3000 x 1500 | 5 | 39.025 | 4000 x 2000 | 32.000 | 251.020 | |
| 3660 x 1830 | 5 | 39.025 | 5000 x 2500 | 32.000 | 251.020 | |
| 4000 x 1750 | 5 | 39.025 | 2500 x 1250 | 35.000 | 274.075 | |
| 4000 x 1830 | 5 | 39.025 | 3000 x 1500 | 35.000 | 274.075 | |
| 4000 x 2000 | 5 | 39.025 | 4000 x 2000 | 35.000 | 274.075 | |
| 6000 x 2000 | 5 | 39.025 | 2000 x 1000 | 40.000 | 314.000 | |
| 2500 x 1250 | 6 | 47.010 | 2500 x 1250 | 40.000 | 314.000 | |
| 3000 x 1500 | 6 | 47.010 | 3000 x 1500 | 40.000 | 314.000 | |
| 3000 x 1525 | 6 | 47.010 | 4000 x 1750 | 40.000 | 314.000 | |
| 3660 x 1830 | 6 | 47.010 | 4000 x 2000 | 40.000 | 314.000 | |
| 4000 x 1750 | 6 | 47.010 | 5000 x 2500 | 40.000 | 314.000 | |
| 4000 x 1830 | 6 | 47.010 | 6000 x 2000 | 40.000 | 314.000 | |
| 4000 x 2000 | 6 | 47.010 | 7500 x 2500 | 40.000 | 314.000 | |
| 6000 x 1500 | 6 | 47.010 | 2000 x 1000 | 45.000 | 353.025 | |
| 6000 x 1830 | 6 | 47.010 | 2500 x 1250 | 45.000 | 353.025 | |
| 6000 x 2000 | 6 | 47.010 | 2500 x 1500 | 45.000 | 353.025 | |
| 6000 x 2500 | 6 | 47.010 | 3000 x 1500 | 45.000 | 353.025 | |
| 8000 x 2000 | 6 | 47.010 | 4000 x 2000 | 45.000 | 353.025 | |
| 8000 x 2500 | 6 | 47.010 | 5000 x 2500 | 45.000 | 353.025 | |
| 2000 x 1000 | 8 | 62.080 | 2000 x 1000 | 50.000 | 392.050 | |
| 2500 x 1250 | 8 | 62.080 | 2500 x 1250 | 50.000 | 392.050 | |
| 3000 x 1500 | 8 | 62.080 | 3000 x 1500 | 50.000 | 392.050 | |
| 3660 x 1830 | 8 | 62.080 | 4000 x 2000 | 50.000 | 392.050 | |
| 4000 x 2000 | 8 | 62.080 | 5000 x 2500 | 50.000 | 392.050 | |
| 5000 x 2500 | 8 | 62.080 | 6000 x 2000 | 50.000 | 392.050 | |
| 6000 x 1500 | 8 | 62.080 | 8000 x 2500 | 50.000 | 392.050 | |
| 6000 x 2000 | 8 | 62.080 | 2000 x 1000 | 60.000 | 471.000 | |
| 8000 x 2000 | 8 | 62.080 | 2500 x 1250 | 60.000 | 471.000 | |
| 2000 x 1000 | 10 | 78.050 | 3000 x 1500 | 60.000 | 471.000 | |
| 2500 x 1250 | 10 | 78.050 | 4000 x 2000 | 60.000 | 471.000 | |
| 3000 x 1500 | 10 | 78.050 | 5000 x 2500 | 60.000 | 471.000 | |
| 4000 x 1750 | 10 | 78.050 | 2000 x 1000 | 65.000 | 510.025 | |
| 5000 x 2500 | 10 | 78.050 | 2500 x 1250 | 65.000 | 510.025 | |
| 6000 x 1500 | 10 | 78.050 | 3000 x 1500 | 65.000 | 510.025 | |
| 6000 x 2000 | 10 | 78.050 | 4000 x 2000 | 65.000 | 510.025 | |
| 6000 x 2500 | 10 | 78.050 | 5000 x 2500 | 65.000 | 510.025 | |
| 10000 x 2000 | 10 | 78.050 | 2000 x 1000 | 70.000 | 549.05 | |
| 10000 x 2500 | 10 | 78.050 | 2500 x 1250 | 70.000 | 549.05 | |
| 2000 x 1000 | 12 | 94.020 | 3000 x 1500 | 70.000 | 549.05 | |
| 4000 x 2000 | 12 | 94.020 | 4000 x 2000 | 70.000 | 549.05 | |
| 6000 x 2000 | 12 | 94.020 | 5000 x 2500 | 70.000 | 549.05 | |
| 6000 x 2500 | 12 | 94.020 | 2000 x 1000 | 75.000 | 588.075 | |
| 2000 x 1000 | 12.05 | 98.013 | 2500 x 1250 | 75.000 | 588.075 | |
| 2500 x 1250 | 12.05 | 98.013 | 3000 x 1500 | 75.000 | 588.075 | |
| 3000 x 1500 | 12.05 | 98.013 | 4000 x 2000 | 75.000 | 588.075 | |
| 3050 x 1525 | 12.05 | 98.013 | 5000 x 2500 | 75.000 | 588.075 | |
| 4000 x 1750 | 12.05 | 98.013 | 2000 x 1000 | 80.000 | 628.000 | |
| 4000 x 2000 | 12.05 | 98.013 | 2500 x 1250 | 80.000 | 628.000 | |
| 5000 x 2500 | 12.05 | 98.013 | 3000 x 1500 | 80.000 | 628.000 | |
| 6000 x 1500 | 12.05 | 98.013 | 4000 x 2000 | 80.000 | 628.000 | |
| 6000 x 2000 | 12.05 | 98.013 | 2000 x 1000 | 90.000 | 706.05 | |
| 6000 x 2500 | 12.05 | 98.013 | 2500 x 1250 | 90.000 | 706.05 | |
| 2000 x 1000 | 15 | 117.075 | 3000 x 1500 | 90.000 | 706.05 | |
| 2500 x 1250 | 15 | 117.075 | 4000 x 2000 | 90.000 | 706.05 | |
| 3000 x 1500 | 15 | 117.075 | 5000 x 2000 | 90.000 | 706.05 | |
| 4000 x 1750 | 15 | 117.075 | 2000 x 1000 | 100.000 | 785.000 | |
| 4000 x 2000 | 15 | 117.075 | 2500 x 1250 | 100.000 | 785.000 | |
| 4000 x 2500 | 15 | 117.075 | 3000 x 1500 | 100.000 | 785.000 | |
| 5000 x 2500 | 15 | 117.075 | 4000 x 2000 | 100.000 | 785.000 | |
| 6000 x 2500 | 15 | 117.075 | 5000 x 2500 | 100.000 | 785.000 | |
| 2500 x 1250 | 20 | 157.000 | 2000 x 1000 | 110.000 | 863.050 | |
| 3000 x 1500 | 20 | 157.000 | 2500 x 1250 | 110.000 | 863.050 | |
| 4000 x 2000 | 20 | 157.000 | 3000 x 1500 | 110.000 | 863.050 |
S355J2G3 Steel Sheets and Plates are extensively utilized in structural and engineering applications due to their high strength and adaptability. They are frequently employed in the construction of bridges, buildings, towers, and industrial frameworks. In the realm of heavy machinery, they are used in cranes, earthmoving equipment, and mechanical components that require durability. The automotive industry also relies on them for chassis, structural supports, and load-bearing components, showcasing their versatility and strength in demanding applications
