Yazan Steel, based in Amman, Jordan, is a trusted name when it comes to manufacturing and supplying Low Temperature Carbon Steel LF787 Flanges. They provide top-notch solutions for industries that operate in extreme sub-zero and cryogenic conditions. Thanks to their cutting-edge production methods and a commitment to global standards, Yazan Steel guarantees that every LF787 flange is built to last, with precision and remarkable strength. Their products cater to vital sectors like oil and gas, petrochemicals, LNG processing, and refrigeration, ensuring that customers receive engineered solutions that promise consistent performance, timely delivery, and reliable quality for critical low-temperature piping systems.
The composition of Low Temperature Carbon Steel LF787 Flanges includes carbon, manganese, silicon, phosphorus, and sulfur, all carefully balanced to optimize performance in low-temperature scenarios. These flanges boast impressive mechanical properties, such as high tensile and yield strength, outstanding impact toughness, and robust resistance to brittle fracture in cryogenic settings. Their finely-tuned microstructure provides stability during temperature fluctuations, while their excellent weldability and machinability make LF787 flanges a perfect fit for essential industrial piping applications where reliability and long-lasting performance are crucial.
| Element | Composition |
|---|---|
| Carbon, max | 0.07 |
| Manganese | 0.40–0.70 |
| Phosphorus, max | 0.025 |
| Sulfur, max | 0.025 |
| Silicon [Note A] | 0.40 max |
| Nickel | 0.70–1.00 |
| Chromium | 0.60–0.90 |
| Molybdenum | 0.15–0.25 |
| Copper | 1.00–1.30 |
| Columbium | 0.02 min |
| Vanadium | 0.03 max |
| Tensile Class | Tensile Strength, ksi [MPa] | Yield Strength, min, ksi [MPa] [Note B, C] | Elongation | Reduction of Area, min, % | |
|---|---|---|---|---|---|
| Round Specimen in 4D, min, % | Strip Specimen in 2 Inch [50mm], min, % | ||||
| Class 2 | 65–85 [450–585] | 55 [380] | 20 | 28 | 45 |
| Class 3 | 75–95 [515–655] | 65 [450] | 20 | 28 | 45 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yazan Steel is one of the most prominent manufacturers and suppliers of superior quality Low Temperature Carbon Steel LF787 Flanges in Amman, Jordan. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.

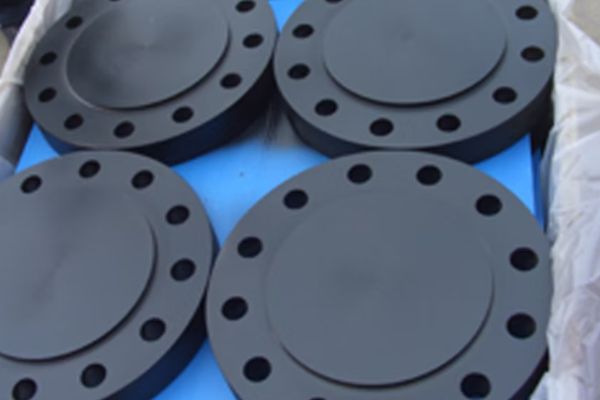

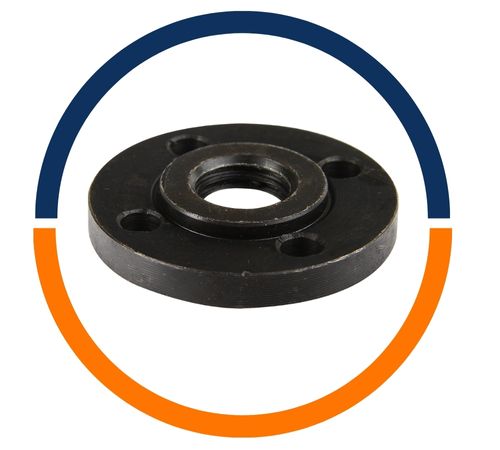

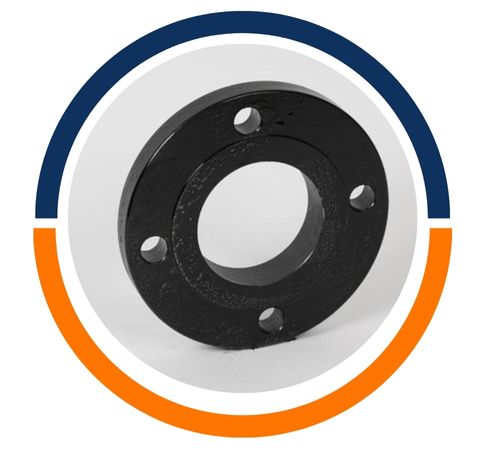

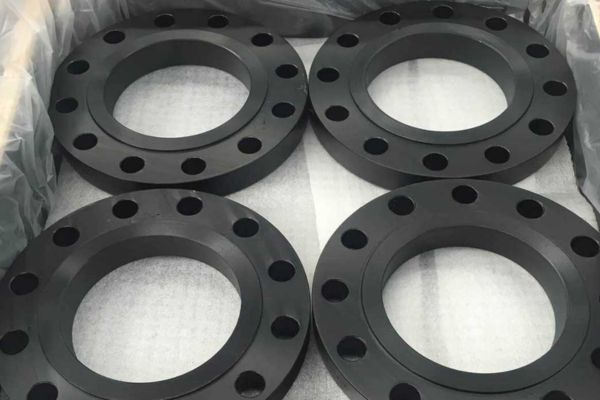

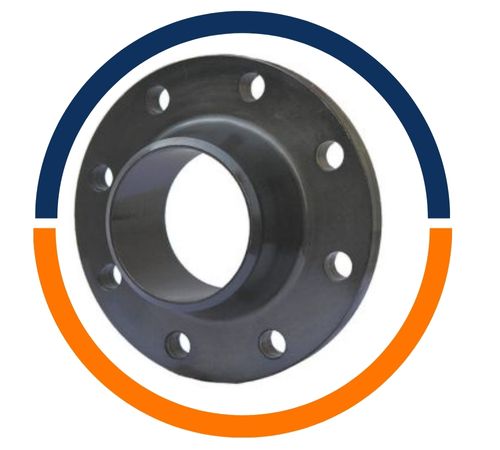

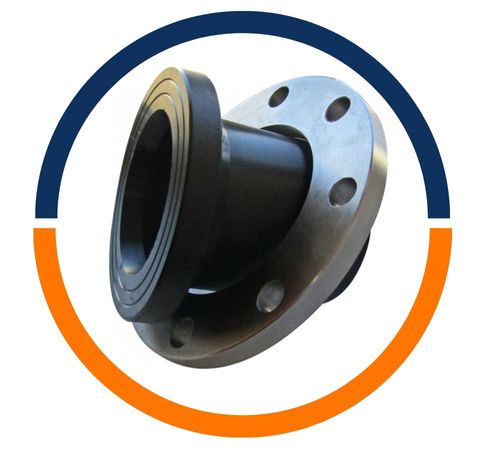

| ASME/ANSI B 16.5 | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, LTCS A350 LF787 Lap Joint Flange, Threaded Flange, LTCS A350 LF787 Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Slip on Flange, LTCS A350 LF787 Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Hubbed Slip on Flange, LTCS A350 LF787 Hubbed Threaded Flange, Lapped Pipe End Flange, LTCS A350 LF787 Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Hubbed Slip-On Hubbed Threaded, Plate Flange, LTCS A350 LF787 Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | LTCS A350 LF787 Welding Neck Flange, Socket Welding Flange, LTCS A350 LF787 Slip-On Flange, LTCS A350 LF787 Blind Flange, LTCS A350 LF787 Screwed Boss Flange, LTCS A350 LF787 Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Plate Slip-On Flange, LTCS A350 LF787 Screwed Boss Flange, Slip-On Boss Flange, LTCS A350 LF787 Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| NPS | O.D. of Flange | Flanges Thickness | Diameter of RF | Diameter of Hub at Base | Lengtd Tdru Hub | Bore or Diameter | Dia. of Hub at Bevel | Radius of Fillet | Deptd of Socket | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Welding (WN) Neck | Slip-On (SORF) Threaded (NPT) Socket (SWRF) | Lap Joint (Loose) | Slip-on (SORF) Socket (SWRF) | Lap Joint (Loose) | ||||||||
| O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.lf2 | 18.00 | 1/2 | 1-15/16 |
| lf2 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | lf2.lf2 | lf2.25 | lf2.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |
| Nominal Pipe Sizes (NPS) | Slip On (SORF) | Threaded (NPT) | Socket Weld (SWRF) | Lap Joint (Loose) | Blind (BLRF) | Weld Neck (WRNR) |
|---|---|---|---|---|---|---|
| ½ | 1 | 1 | 2 | 1 | 2 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
| 1½ | 3 | 3 | 3 | 3 | 4 | 4 |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 |
| 2½ | 8 | 8 | 8 | 8 | 7 | 10 |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
| 3½ | 11 | 12 | 11 | 11 | 13 | 12 |
| 4 | 13 | 13 | 13 | 13 | 17 | 16.5 |
| 5 | 15 | 15 | 15 | 15 | lf2 | 21 |
| 6 | 19 | 19 | 19 | 19 | 27 | 26 |
| 8 | 30 | 30 | 30 | 30 | 47 | 42 |
| 10 | 43 | 43 | 43 | 43 | 70 | 54 |
| 12 | 64 | 64 | 64 | 64 | 123 | 88 |
| 14 | 90 | 90 | 90 | 105 | 140 | 114 |
| 16 | 106 | 98 | 98 | 140 | 180 | 140 |
| 18 | 130 | 130 | 130 | 160 | 2lf2 | 165 |
| lf2 | 165 | 165 | 165 | 195 | 285 | 197 |
| 22 | 185 | 185 | 185 | 245 | 355 | 225 |
| 24 | 2lf2 | 2lf2 | 2lf2 | 275 | 430 | 268 |
You’ll find Low Temperature Carbon Steel LF787 Flanges widely utilized in industries that demand secure, leak-proof, and durable connections in freezing or cryogenic environments. They’re often found in LNG storage tanks, gas processing facilities, refrigeration systems, and pipelines for low-temperature fluid transport. These flanges maintain their mechanical integrity even when faced with cold liquids, compressed gases, and varying temperatures. Their strength makes them ideal for use in refineries, offshore installations, petrochemical plants, and power generation units, where safety, operational efficiency, and structural reliability are of utmost importance.
