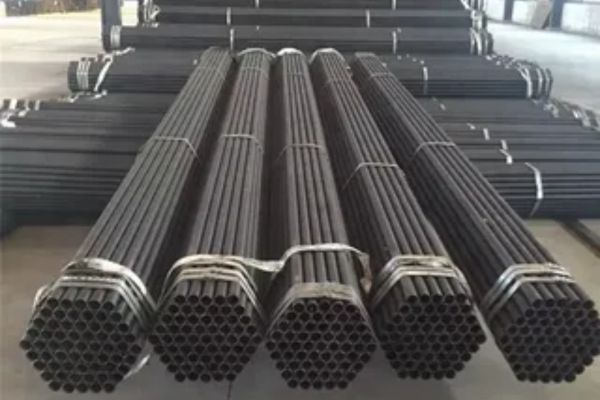

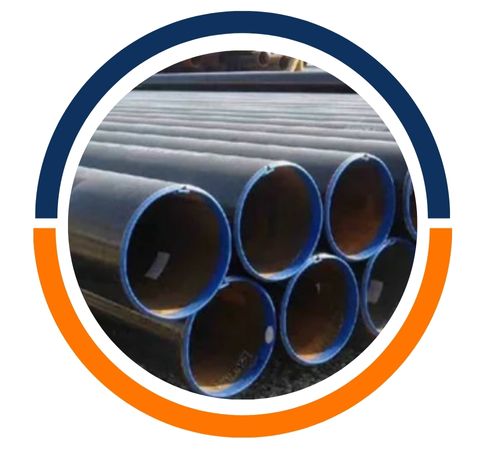

Situated in the industrial heart of Amman, Jordan, Yazan Steel has built a strong reputation for reliability and quality in the steel sector. As a trusted manufacturer and supplier, we take pride in offering robust solutions for demanding applications, with our Carbon Steel SA214 Tubing standing as a prime example of our commitment. This specific product is engineered to meet the rigorous needs of heat exchange, providing a dependable and efficient option for industries throughout the region and beyond, backed by our expert technical support and local accessibility.
The composition of SA214 tubing is primarily a blend of carbon, manganese, and silicon, creating a material known for its excellent weldability and formability. Its key mechanical strength comes from its impressive tensile strength and good yield point, allowing it to withstand significant internal pressure and structural loads. This particular grade of carbon steel is celebrated for its reliable performance under heat, making it a go-to material for systems where consistent thermal conductivity and durability are non-negotiable requirements in various industrial settings.
| Grade: | ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L |
|---|---|
| Size: | 1/8” NB TO 24” NB Sch 40/80/160/XXS |
| Form | Round, Square, Rectangular, Coil, U Tube, |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Bevelled End |
| Type | Seamless / ERW / Welded |
| Certification For Carbon | Mill Test Certificate as per EN 10204 / 3.2B |
| General Requirements | ASTM A 530/A 530M |
| Dimensional Tolerances | ANSI B 36.10 |
| OD Range | 1.250″ – 6.000″ (30-150mm) |
| Wall Range | 0.095″ – 1.000″ (.2.5-25mm) |
| Element | A/SA 214 |
| C | 0.18 max. |
| Mn | 0.27 – 0.63 |
| P | 0.035 max |
| S | 0.035 max |
| Element | A/SA 214 |
| Tensile Strength KSI (MPa) | 47[325] |
| Yield Strength KSI (MPa) | 26[180] |
| Elongation min. % | ≥35% |
| Hardness | ≤72 HRB |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality Carbon Steel SA214 Tubing in Amman, Jordan. We provide premium steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to prompt delivery and exceptional customer service, we source the finest raw materials to ensure superior strength and durability for demanding industrial applications. Contact us today for all your Carbon Steel SA214 Tubing needs!
| Designation of Diameter | O/D | Nominal Wall Thickness | ||||||||||||||||||
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.20S | SCH.30 | SCH.40S | SCH.40 | SCH 60 | |||||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | 1.2 | 0.27 | 1.5 | 0.33 | 1.73 | 0.37 | ||||||||||
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2 | 0.58 | 2.24 | 0.64 | ||||||||||
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | 1.65 | 0.63 | 2 | 0.74 | 2.31 | 0.87 | ||||||||||
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | 2.77 | 1.29 | ||||||
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | 2.87 | 1.71 | ||||||
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | 3.38 | 2.54 | ||||||
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | 3.56 | 3.44 | ||||||
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | 3.68 | 4.11 | ||||||
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | 3.91 | 5.52 | ||||||
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | 5.16 | 8.77 | ||||||
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | 5.49 | 11.47 | ||||||
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | 5.74 | 13.78 | ||||||
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | 6.02 | 6.32 | ||||||
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | 6.55 | 2210 | ||||||
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | 7.11 | 28.69 | ||||||
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | 10.81 | 53.9 | ||
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | 12.2 | 82.8 | ||
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 | 14.27 | 110.62 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | 15.06 | 128.42 | ||
| 400 | 16 | 406.4 | 4.19 | 42.2 | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | 16.66 | 162.59 | ||
| 450 | 18 | 457.2 | 4.19 | 47.46 | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | 19.05 | 209 | ||
| 500 | 2C | 508 | 4.78 | 60.23 | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | 2062 | 251.65 | ||
| 550 | 22 | 558.8 | 4.78 | 65.95 | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | 22.23 | 298.55 | ||
| 600 | 24 | 609.6 | 5.54 | 83.8 | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | 24.59 | 360.21 | ||
| 650 | 26 | 660.4 | 7.92 | 129.4 | 12.7 | 205.97 | 9.53 | 155.32 | ||||||||||||
| 700 | 28 | 711.2 | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | ||||||||||
| 750 | 3C | 762 | 6.35 | 120.15 | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | ||||||
| 800 | 32 | 812.8 | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | ||||||||
| 850 | 34 | 863.6 | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | ||||||||
| 900 | 36 | 914.4 | 7.92 | 179.77 | 12.7 | 286.75 | 15.88 | 357.28 | 9.53 | 215.93 | 19.05 | 427.09 | ||||||||
The primary use for this tubing is in the construction of heat exchangers and condensers, where its efficient heat transfer properties are essential for systems in power generation and chemical processing plants. You will also find it widely applied in boiler systems, both for fire-tube and water-tube designs, as well as in various industrial machinery that requires a network of pipes for heat management. Its versatility and proven performance make it a fundamental component in sectors ranging from oil and gas to HVAC, ensuring operational efficiency in critical applications.
Yazan Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Amman, Jordan.
