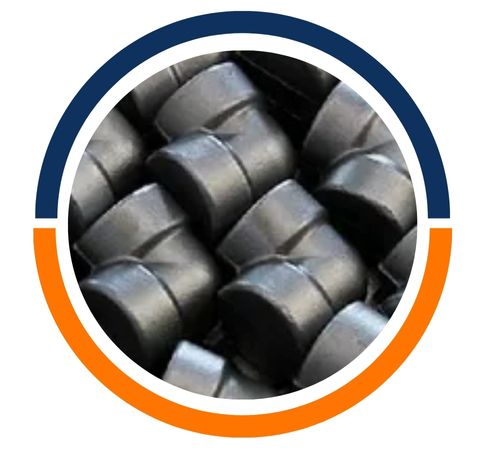

Yazan Steel stands as a trusted manufacturer and supplier in Amman, Jordan, recognized for its commitment to robust industrial solutions. We specialize in providing high-performance Carbon Steel A105 Forged Fittings, known for their exceptional reliability in demanding environments. Our focus is on delivering products that ensure strength and durability, supporting the critical infrastructure projects that power industries across the region. From our base in Jordan, we are dedicated to meeting the precise needs of our clients with fittings built to last.
The strength of Carbon Steel A105 comes from its specific composition, primarily carbon, manganese, and silicon, which is carefully balanced to achieve excellent mechanical properties. These fittings are designed for toughness, offering high tensile and yield strength to withstand significant pressure. This makes them exceptionally resistant to deformation and stress, ensuring a long service life even under harsh operating conditions. The forging process itself enhances these properties, creating a dense, uniform microstructure.
Standard : ASTM A105 / ASME SA 105
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB

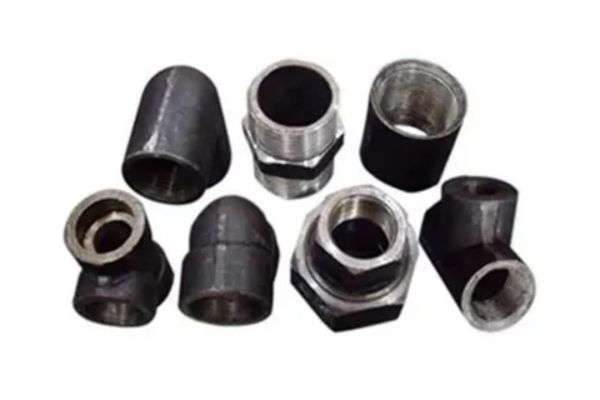

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A105 | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
| Grade | Yield Strength, Min (MPa) | Tensile Strength, Min (MPa) | Elongation, min, % |
| A105 | 250 | 485 | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS A105 Forged Screwed Elbows, Street Elbow, A105 Carbon Steel Screwed Unequal Tee, Steel Straight Tee, Carbon Steel A105 Reducing Coupling, A105 Carbon Steel Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS A105 Threaded Bushing, A105 Carbon Steel Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel A105 Barrel Nipples, CS A105 Forged Threaded Boss, A105 Carbon Steel Forged Hex Head Bull Plugs |

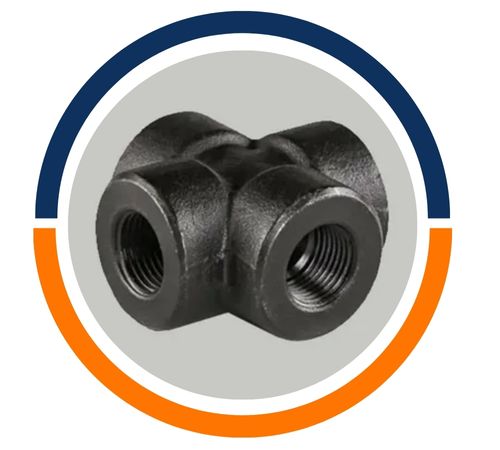

| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel A105 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS A105 caps, 3000LB Socket Weld Cross |

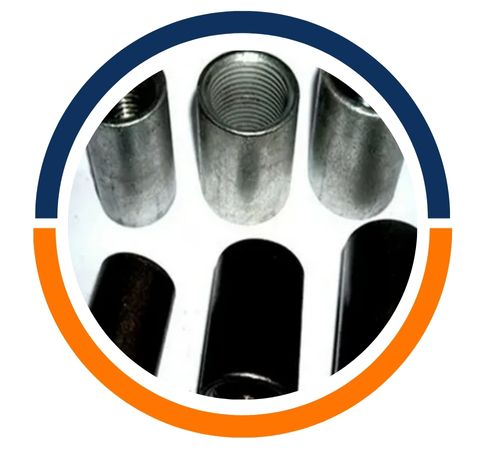

| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS A105 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel A105 Coupling |
These fittings are the go-to choice for high-pressure and high-temperature systems, forming the backbone of many industrial operations. You will commonly find them in oil and gas pipelines, petrochemical plants, and power generation facilities, where their reliability is non-negotiable. They are essential for connecting valves, pumps, and other equipment in processes that cannot afford failure. Their versatility also makes them suitable for water distribution and various construction applications, proving their value in both critical and everyday infrastructure.
Yazan Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Amman, Jordan.
